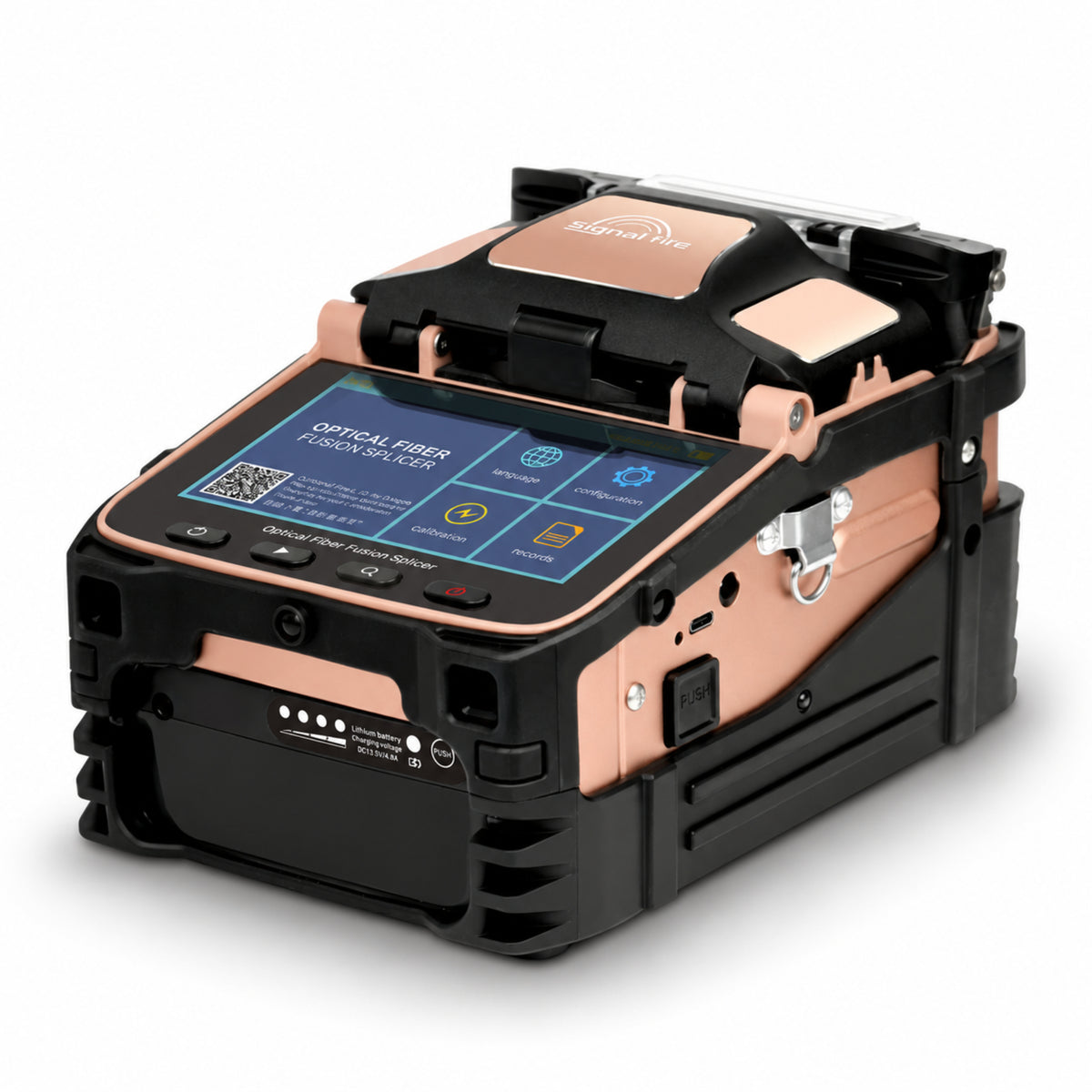

Signal Fire AI-12 Trunk-Line Fiber Fusion Splicer ( 6-Motor Core Alignment )

Precision Core Alignment for Trunk Fiber Projects

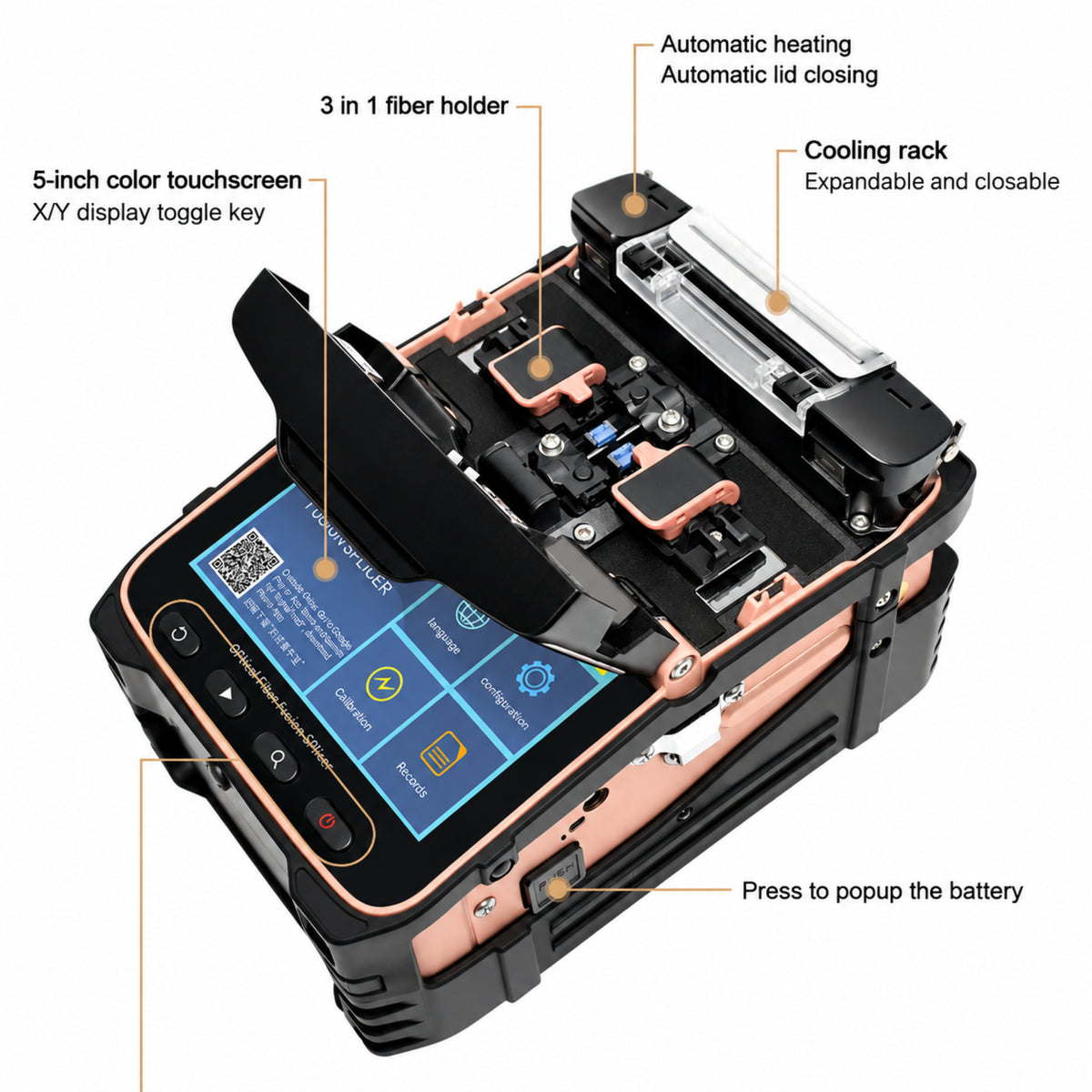

Signal Fire AI-12 is designed for medium- to long-distance trunk fiber projects, with six-motor core alignment and 0.05μm alignment accuracy. Up to 320× single-axis / 200× dual-axis magnification keeps the fiber core and alignment visible on screen, helping reduce rework caused by unclear alignment.

Splicing and Line Testing in One Machine
Built-in OPM and 15mW VFL combine splicing, optical power measurement and visual fault location in one unit, reducing extra instruments, tool switching, missed checks and rework. The OPM supports 10 wavelengths; the VFL offers 2Hz flashing and continuous modes.

Power for Extended Field Work
The removable 7800mAh battery supports approximately 260 splice-and-heat cycles per charge and recharges in ≤3.5hours. Three charging channels are provided, including up to 45W bidirectional Type-C, which can also power a mobile phone.

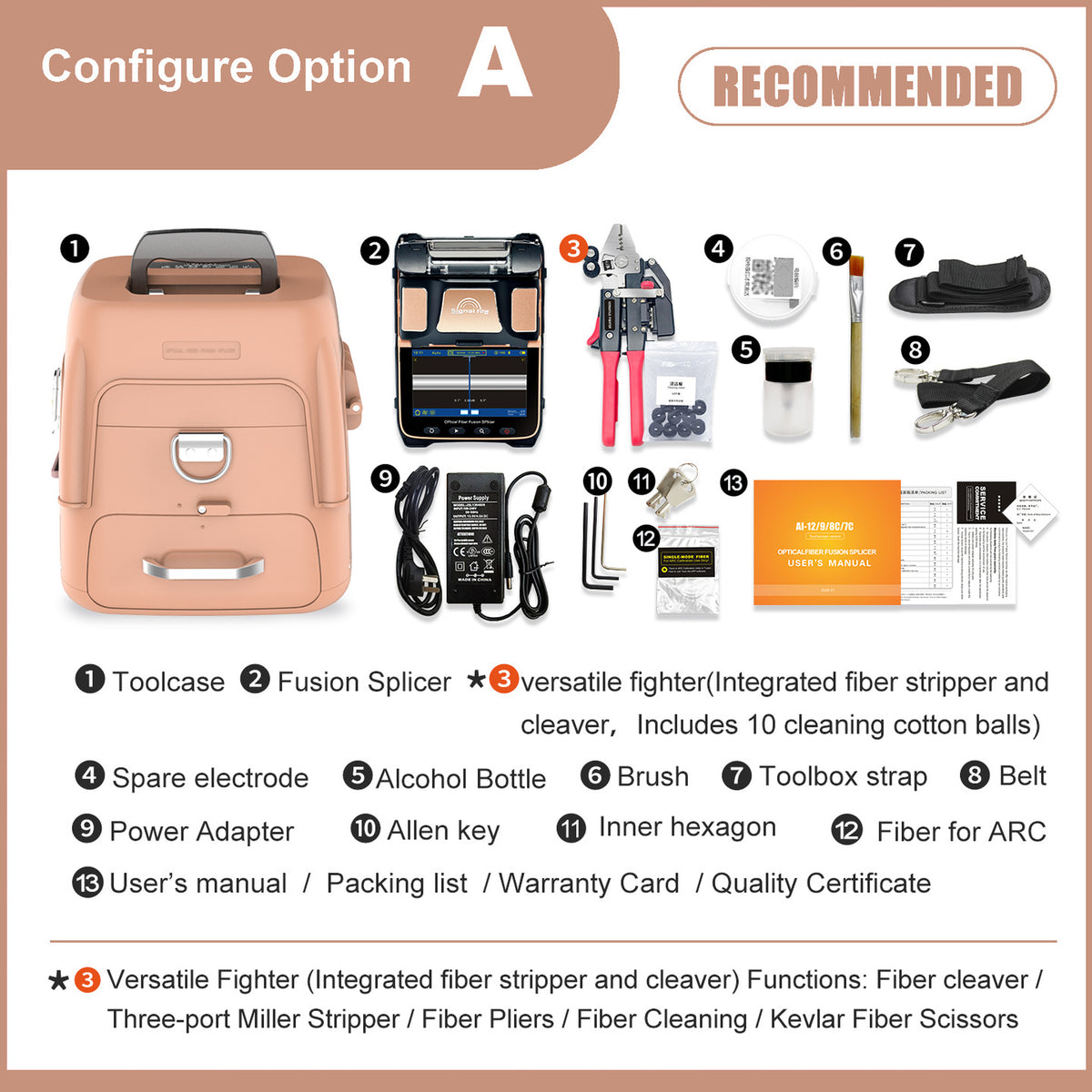

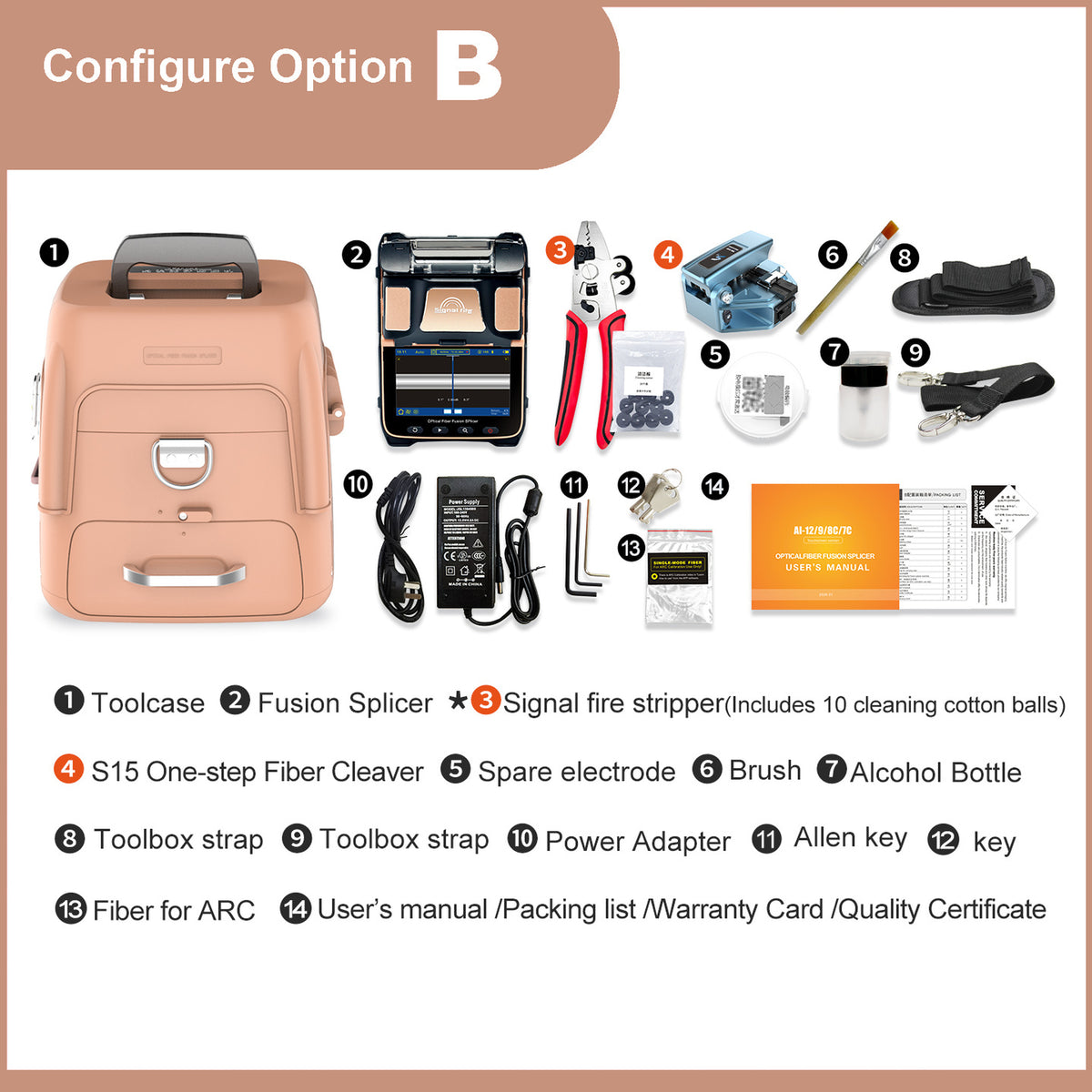

From the Fusion Splicer to the Toolcase, Designed for Field Work
The AI-12 toolcase keeps the fusion splicer and tools together, with no need to remove the splicer during operation. It also serves as a stool rated up to 100kg. The splicer supports operation up to 5000m altitude and 15m/s wind speed, with waterproof, dustproof and drop-proof protection.
